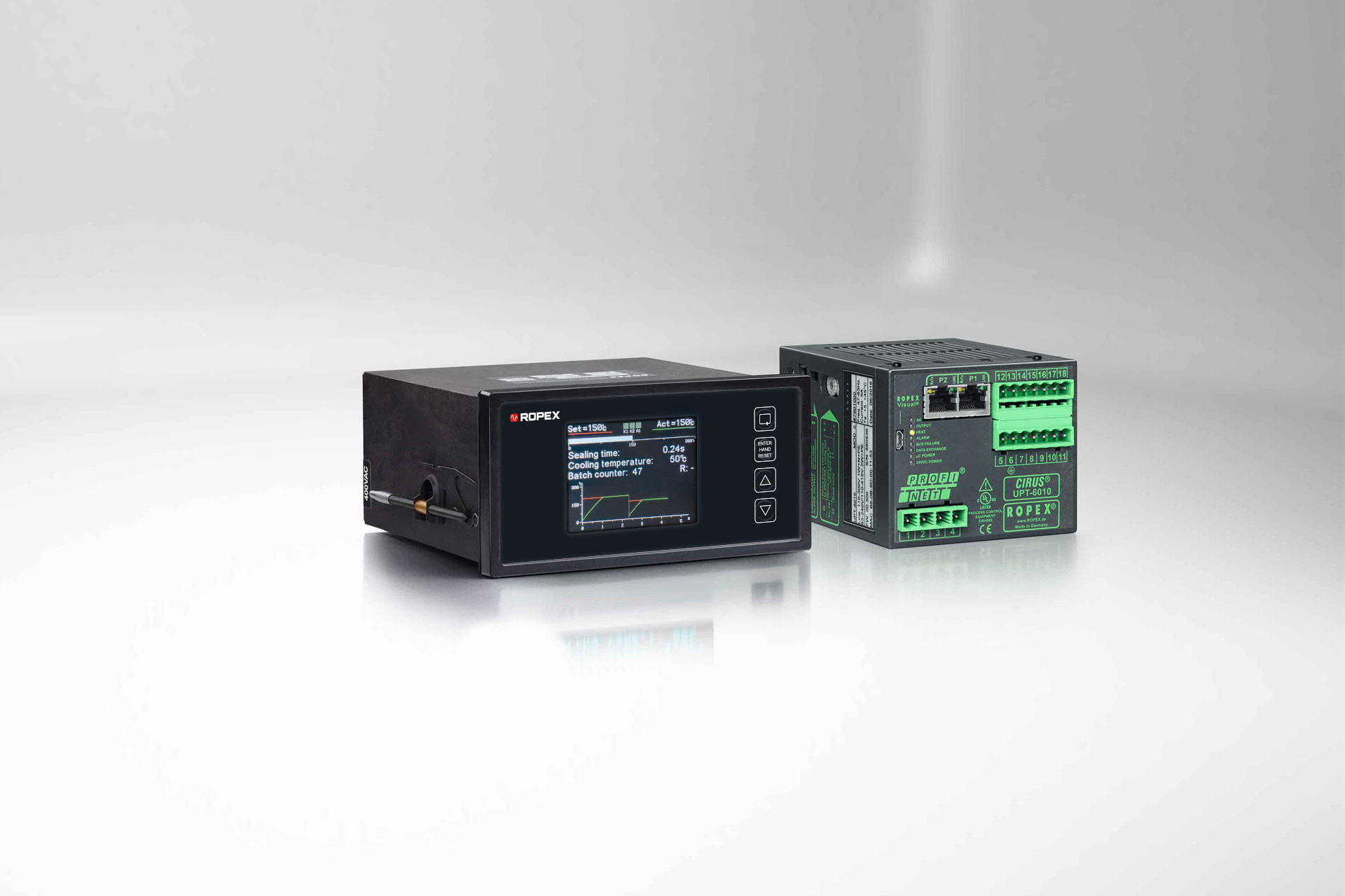

UPT- TEMPERATURE CONTROLLER

✓ Display versions
✓ Rail mounting versions

Our temperature controllers are the perfect control solution for your sealing application. They offer multiple interfaces and can be seamlessly integrated into your machine control system for optimal performance.

UPT- Temperature Controller

For precise temperature generation and control of CIRUS sealing tools, ROPEX offers temperature controllers specially developed for this technology. With these controllers, heat pulses in the range of a few hundred milliseconds with heating edges of up to 6000 K/s can be generated. They measure the active temperature of the heating line using the resistance layer of the sealing tool.

Rail mounting versions

TypeTemperature
Adjustment
Temperature
Output
DisplayDiag­nosticsTerminals
Alarm
Terminals
Booster
Approval​Diagnosis toolVoltage rangeFeatures
UPT-6006PROFIBUS 0...10 VDCPROFIBUSROPEXvisual110...415 VACPROFIBUS interface
cooling system monitoring
Wide voltage range
Successor of UPT-606
UPT-6010PROFINET 0...10 VDCPROFINET cULusROPEXvisual /
Webserver
110...415 VACPROFINET interface,
cooling system monitoring
UPT-6011EtherNet/IP 0...10 VDCEtherNet/IPcULusROPEXvisual /
Webserver
110...415 VACEtherNet/IP interface,
cooling system monitoring
UPT-6012EtherCAT 0...10 VDCEtherCATcULusROPEXvisual /
Webserver
110...415 VACEtherCAT interface,
cooling system monitoring
Standard      Option      Accessory      Galvanically not isolated      Galvanically isolated

Display versions

TypeTemperature
Adjustment
Temperature
Output
DisplayDiag­nosticsTerminals
Alarm
Terminals
Booster
ApprovalDiagnosis toolVoltage rangeFeatures
UPT-6400Display /
0...10 VDC
Display /
0...10 VDC
TFTCSA_c-usROPEXvisual110...480 VACAs a replacement for UPT-640​
Timer function​
Cooling system monitoring​
PLC interface​
UPT-6450Display /
0...10 VDC
Display /
0...10 VDC
TFTCSA_c-usROPEXvisual110...480 VACAs a replacement for UPT-640​
Timer function​
Cooling system monitoring​
PLC interface​
Force and temperature measurement
Standard      Option      Accessory      Galvanically not isolated      Galvanically isolated

TFT = Thin-film transistor-Display

UPT-6xx series: Overview successors and alternatives to temperature controllers

An overview of the successor models and alternatives to our discontinued temperature controllers can be downloaded here as a PDF .

UPT-6xx series: Support and availability

Here, you can explore an overview of the last order received, the available repair service dates, and ROPEX support services, along with alternatives to our discontinued temperature controllers from the UPT-6xx series, all available for download.
