RES
HEAT-SEAL BARS AND TOOLS
The RES sealing tool is a heat sealing bar with a heat sealing band and a matching counter bar which are tailored to your individual sealing application.
By combining it with the system components, you obtain a customized system configuration.
RESISTRON HEAT-SEAL BARS AND TOOLS
Your Advantage: Standard or Customized – You Decide!
Take advantage of our standard tools if your application fits the required dimensions. This way, you benefit from faster delivery times, attractive pricing, and of course, our consistently high quality.
And if you need something truly unique?
We’ll design a custom tool for you – perfectly tailored to your requirements: precise, reliable, and made just for you.
The sealing tools are available with or without cooling, for contour and 3D applications. The bars can be manufactured in lengths from a few centimeters to several meters. We design the heat-sealing tape, the matching base, and the Teflon tape individually to suit your film properties and your application.

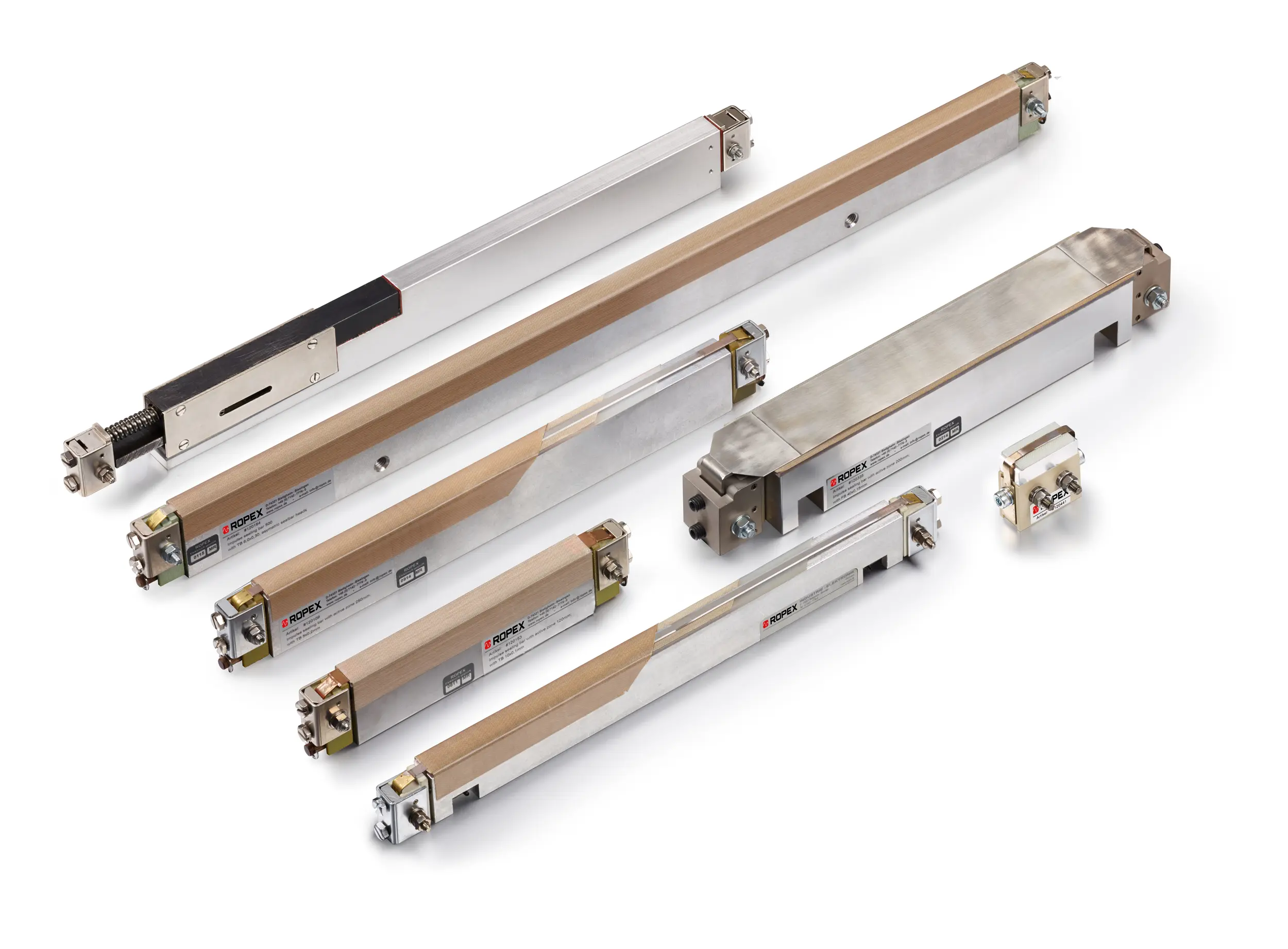

RESISTRON standard tools are available with heating line lengths of 200, 230, 260 mm, and from 300 to 1200 mm in 50 mm increments. Widths are offered in 3, 4, 5, and 6 mm.
By choosing a standard tool, you benefit from fast delivery, better pricing conditions, and the same consistently high quality you expect.
To request a standard tool, simply submit your inquiry using the contact form, or complete the questionnaire to help you find the right standard tool for your specific needs.
Configuration sealing bars with a heat-sealing band are widely used in film sealing processes. Owing to their good heat conduction, small mass and electromagnetic compatibility, they are generally manufactured from alloyed aluminum and have a rectangular section.
The body of the bar is mostly 30, 40 or 60 mm high and 10, 15 or 20 mm wide. The length ranges from a few centimeters to several meters.
The bars can be equipped with coolant holes in the longitudinal axis on request. They are usually shipped by ROPEX fully assembled with bar end blocks, an underlay for the heat-sealing band and teflon tape.

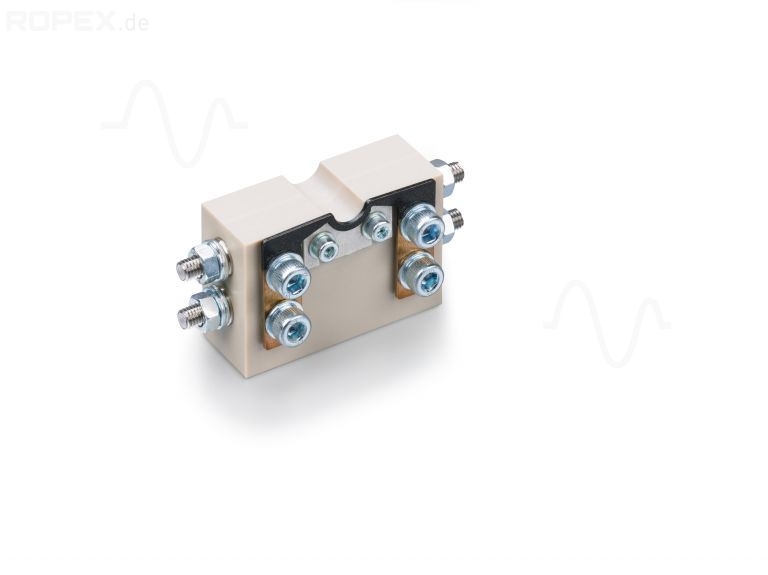

Flat, contoured sealing tools are usually custom-made products for one specific customer, where the heat sealing tool and counter bar are designed together to ensure that they interact perfectly.
Angular, circular, rectangular or curved contours can also be supplied depending on the task at hand. Precise laser cuts guarantee extremely close tolerances and consistent reproduction for complex band contours. The thickness, width and coating of the heat sealing band are adapted to the application.
The principal challenge here is to achieve a perfect balance between the temperature distribution, current input, expansion and alloy.
For our customers we create innovative applications to find the individual sealing solution. We can define the ideal “magic triangle” – heat, time and pressure – for your needs.
We would be happy to test the feasibility of your special application and suggest an alternative solution where necessary. A perfect balance between your application and the sealing bar is key.
Heat sealing bands also allow you to design three-dimensional contours due to their elasticity. We are thus able to manufacture complete sealing bars for 3D contours. Spouts are a typical example here.
A flat film is fused onto both sides of a rigid, convex spout; it forms the top of a pouch or bag with a screw-type or tube connection often encountered in medical applications.
The challenges are similar to those presented by 2D contours, except that a thin film is additionally bonded to a hard, three-dimensional plastic. The sealing bar contour, heat sealing band and counter bar must be perfectly executed.
