RES-TEMPERATURE CONTROLLER
✓ Display versions
✓ Rail mounting versions
The right solution for every application – Our temperature controllers are perfectly designed for our systems and offer a wide variety of interfaces to your machine control system.
RES- Temperature Controller
The temperature controller is the heart of the heat-sealing system. By continuously measuring current and voltage, it monitors and controls the change in resistance of the heatsealing band caused by temperature fluctuations. This measurement cycle is executed 50 times/second (50 Hz) or 60 times/second (60 Hz).
The RES- temperature controllers are used for the application of sealing bars with heat-sealing band. Furthermore, the controllers can also be used for other sealing applications, such as the control of hot air applications.

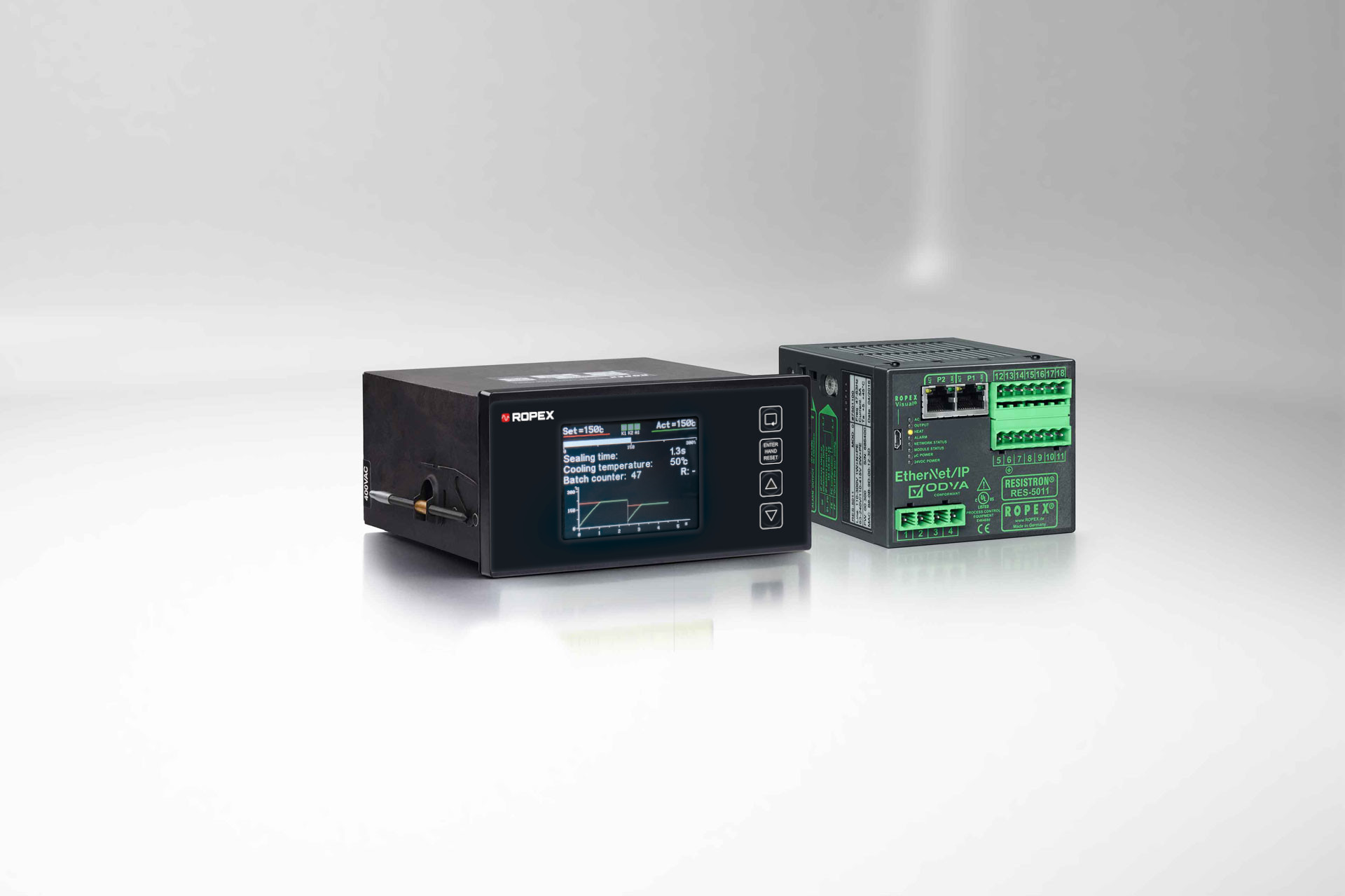

We offer a display and a rail mounting version. The display version is suitable for installation in a control panel and offers you direct input of the relevant sealing parameters. In addition, the display shows the current setting values and the temperature reached.
Rail mounting versions
| Type | Temperature Adjustment | Temperature Output | Display | Diagnostics | Terminals Alarm | Terminals Booster | Approval | Diagnosis tool | Voltage range | Features |
|---|---|---|---|---|---|---|---|---|---|---|
| RES-401 Last order 30.09.2023 | Resistive Input (0…2 kOhm) | 0...10 VDC | CI-USB-1 | 110...120 VAC 220...240 VAC 380...415 VAC | Low cost | |||||
| RES-402 Last order 30.09.2023 | 0...10 VDC / Resistive Input (0…2 kOhm) | 0...10 VDC | CI-USB-1 | 110...120 VAC 220...240 VAC 380...415 VAC | Low cost, simple applications, max. U2 = 80 VAC PLC interface |
|||||
| RES-403 Last order 30.09.2023 | Resistive Input (0…2 kOhm) | 0...10 VDC | CI-USB-1 | 110...120 VAC 220...240 VAC 380...415 VAC | Simple applications | |||||
| RES-406 Last order 30.09.2023 | PROFIBUS | 0...10 VDC | CI-USB-1 | 110...120 VAC 220...240 VAC 380...415 VAC | PROFIBUS interface Replaced by RES-5006 |
|||||
| RES-5006 | PROFIBUS | 0...10 VDC | ROPEXvisual | 110...415 VAC | 8 channels for different calibration values | |||||
| RES-407 Last order 30.09.2023 | 0...10 VDC / Resistive Input (0…2 kOhm) | 0...10 VDC | CI-USB-1 | 110...120 VAC 220...240 VAC 380...415 VAC | PLC interface Replaced by RES-5007 and RES-5027 |
|||||
| RES-5007 | 0...10 VDC / Resistive Input (0…2 kOhm) | 0...10 VDC |  | ROPEXvisual | 110...480 VAC | Successor of RES-407 Preferably in combination with PLC |
||||
| RES-5027 | 0...10 VDC / Resistive Input (0…2 kOhm) | 0...10 VDC | | ROPEXvisual | 110...480 VAC | Successor of RES-407 Preferably in combination with PLC Temp OK output Output level operation |
||||
| RES-408 Last order 30.09.2023 | Display | 0...10 VDC | 7 Seg. LED | CI-USB-1 | 110...120 VAC 220...240 VAC 380...415 VAC | Separate operator panel with LED display, Preheat |
||||
| RES-5008 | Display | 0...10 VDC | 7 Seg. LED | ROPEXvisual | 110...480 VAC | Successor of RES-408 Separate operator panel with LED display, Preheat |
||||
| RES-409 Last order 30.09.2023 | CAN-Bus | 0...10 VDC | CI-USB-1 | 110...120 VAC 220...240 VAC 380...415 VAC | CAN bus interface, preheat |
|||||
| RES-5009 | CAN / CANopen | 0...10 VDC | | ROPEXvisual | 110...480 VAC | Successor of RES-409 8 channels for different calibration values, Preheat |
||||
| RES-5010 | PROFINET | 0...10 VDC | | ROPEXvisual / Webserver | 110...480 VAC | 8 channels for different calibration values | ||||
| RES-5011 | EtherNet/IP | 0...10 VDC | | ROPEXvisual / Webserver | 110...480 VAC | 8 channels for different calibration values | ||||
| RES-5012 | EtherCAT | 0...10 VDC | | ROPEXvisual / Webserver | 110...480 VAC | 8 channels for different calibration values |
LCD = Liquid crystal display (green) VFD = Vacuum flourescent display (blue)
Display versions
| Type | Temperature Adjustment | Temperature Output | Display | Diagnostics | Terminals Alarm | Terminals Booster | Approval | Diagnosis tool | Voltage range | Features |
|---|---|---|---|---|---|---|---|---|---|---|
| RES-420 Last order 31.12.2023 | Display | LCD VFD | CI-USB-1 | 110...120 VAC 220...240 VAC 380...415 VAC | Simple applications | |||||
| RES-5200 Available from January 2024 | Display | Display / 0...10 VDC | TFT |  | ROPEXvisual | 110...480 VAC | As a replacement for RES-420 Stand alone applications |
|||
| RES-440 Last order 31.12.2023 | Display | 0...10 VDC | LCD VFD | CI-USB-1 | 110...120 VAC 220...240 VAC 380...415 VAC | Timer functions, preheat |
||||
| RES-445 Last order 31.12.2023 | Display / 0...10 VDC | 0...10 VDC | LCD VFD | CI-USB-1 | 110...120 VAC 220...240 VAC 380...415 VAC | Timer functions, preheat, PLC interface |
||||
| RES-5400 Available from January 2024 | Display / 0...10 VDC | Display / 0...10 VDC | TFT | | ROPEXvisual | 110...480 VAC | As a replacement for RES-440/445 Timer function Preheat PLC interface Force measurement with diagnostics |
LCD = Liquid crystal display (green) VFD = Vacuum flourescent display (blue)
Display Controller for Table Top Machines
| Type | Temperature Adjustment | Temperature Output | Display | Diagnostics | Terminals Alarm | Terminals Booster | Approval | Diagnosis tool | Voltage range | Features |
|---|---|---|---|---|---|---|---|---|---|---|
| RES-004 | Display | 7 Seg. LED | CI-USB-1 | Low cost, very simple or restricted applications, LED display, timer functions, burst firing control |
||||||
| RES-430 Last order 31.12.2023 | Display | 0...10 VDC | LCD | CI-USB-1 | Low cost, simple or restricted applications, closing pressure monitoring, timer functions, secondary control |
LCD = Liquid crystal display (green) VFD = Vacuum flourescent display (blue)
